MCP Server for Developers

View as Markdown

PREVIEW This feature is in public preview. It is under active development and may have stability or performance issues. It isn't subject to our backwards compatibility guarantees.

Materialize provides a built-in Model Context Protocol (MCP) endpoint /api/mcp/developer (port 6876) for troubleshooting and observability. The MCP interface is served directly by the database; no sidecar process or external server is required.

Overview

The /api/mcp/developer endpoint provides read-only access to the system catalog (mz_* tables). You can connect an MCP-compatible AI agent (such as Claude Code, Claude Desktop, or Cursor) to the /api/mcp/developer endpoint and ask natural language questions like:

Why is my materialized view stale?
How much memory is my cluster using?.

Connect to the MCP server

Step 1. Get connection details

Log in to the Materialize Console.

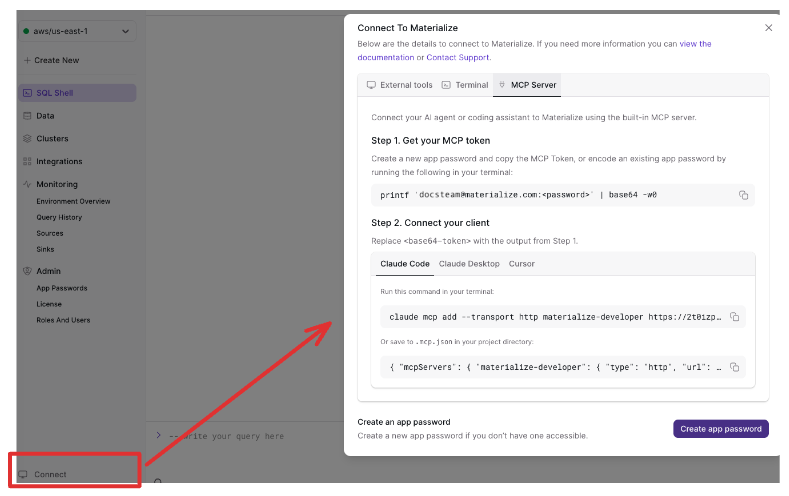

Click the Connect link (lower-left corner) to open the Connect modal and click on the MCP Server tab.
To get your base64-encoded token:
- To use an existing personal app password, generate a base64-encoded token. MCP clients send credentials as a Base64-encoded user:password string.
```
printf '<user>:<app_password>' | base64 -w0
```
- To create a new personal app password to use, click on the Generate personal MCP token to generate a new token for MCP Server. Copy the token.

You can connect using either an existing or new login role with password.
- To use an existing role, go to the next step.
- To create a new login role with password:
```
CREATE ROLE my_agent LOGIN PASSWORD 'your_password_here';
```

Encode your credentials in Base64. MCP clients send credentials as a Base64-encoded user:password string.

printf '<user>:<password>' | base64 -w0

For example:

printf 'svc-mcp-agent@mycompany.com:my_app_password_here' | base64 -w0
# Output: c3ZjLW1jcC1hZ2VudEBteWNvbXBhbnkuY29tOm15X2FwcF9wYXNzd29yZF9oZXJl

Find your deployment’s host name to use in the MCP endpoint URL; that is, your MCP endpoint URL is:
```
http://<host>:6876/api/mcp/developer
```
- For your Self-Managed Materialize deployment in AWS/GCP/Azure, the <host> is the load balancer address. If deployed via Terraform, run the Terraform output command for your cloud provider:
```
# AWS
terraform output -raw nlb_dns_name

# GCP
terraform output -raw balancerd_load_balancer_ip

# Azure
terraform output -raw balancerd_load_balancer_ip
```
- For local kind clusters, use port forwarding and use localhost for <host>:
```
kubectl port-forward svc/<instance-name>-balancerd 6876:6876 -n materialize-environment
```

To connect to the MCP server for your Emulator, use the following endpoint (based on your deployment’s base URL of http://localhost:6876):

http://localhost:6876/api/mcp/developer

Step 2. Configure your MCP client

WARNING! When saving your credentials or other sensitive information in a config file, do not commit these files to version control or share them publicly.

Add the materialize-developer MCP server as local-scoped server (i.e., the configurations are stored in ~/.claude.json):

claude mcp add --transport http materialize-developer \
  <baseURL>/api/mcp/developer \
  --header "Authorization: Basic <mcp-token>"

Update the <baseURL> and <mcp-token> placeholders with your values:

Deployment	`<baseURL>`	`<mcp-token>`
Cloud	Replace with your value (format: `https://<region-id>.materialize.cloud`)	Replace with your value
Self-Managed	Replace with your value (format: `http://<host>:6876`)	Replace with your value
Emulator	`http://localhost:6876`	Leave the placeholder as-is

💡 Tip: For Cloud, you can get the MCP URL directly from the Console’s Connect modal. The modal displays the correct <baseURL>.

Restart Claude Code to pick up the new setting.

Add the materialize-developer MCP server entry to your Claude Desktop configuration (claude_desktop_config.json).

When merging into an existing mcpServers object, remember to add commas between entries.
If the mcpServers field does not already exist, add it as well.
For older Claude Desktop versions, you may need to include the transport "type": "http", as well as part of the materialize-developer entry.

{
  "mcpServers": {
    "materialize-developer": {
      "url": "<baseURL>/api/mcp/developer",
      "headers": {
        "Authorization": "Basic <mcp-token>"
      }
    }
  }
}

Update the <baseURL> and <mcp-token> placeholders with your values:

Deployment	`<baseURL>`	`<mcp-token>`
Cloud	Replace with your value (format: `https://<region-id>.materialize.cloud`)	Replace with your value
Self-Managed	Replace with your value (format: `http://<host>:6876`)	Replace with your value
Emulator	`http://localhost:6876`	Leave the placeholder as-is

💡 Tip: For Cloud, you can get the MCP URL directly from the Console’s Connect modal. The modal displays the correct <baseURL>.

Restart Claude Desktop to pick up the new setting.

Add the materialize-developer MCP server entry to your local MCP settings file (~/.cursor/mcp.json).

When merging into an existing mcpServers object, remember to add commas between entries.
If the mcpServers field does not already exist, add it as well.

{
  "mcpServers": {
    "materialize-developer": {
      "url": "<baseURL>/api/mcp/developer",
      "headers": {
        "Authorization": "Basic <mcp-token>"
      }
    }
  }
}

Update the <baseURL> and <mcp-token> placeholders with your values:

Deployment	`<baseURL>`	`<mcp-token>`
Cloud	Replace with your value (format: `https://<region-id>.materialize.cloud`)	Replace with your value
Self-Managed	Replace with your value (format: `http://<host>:6876`)	Replace with your value
Emulator	`http://localhost:6876`	Leave the placeholder as-is

💡 Tip: For Cloud, you can get the MCP URL directly from the Console’s Connect modal. The modal displays the correct <baseURL>.

Restart Cursor to pick up the new setting.

Any MCP-compatible client can connect by sending JSON-RPC 2.0 requests; update the <baseURL> and <mcp-token> placeholders with your values:

curl -X POST <baseURL>/api/mcp/developer \
  -H "Content-Type: application/json" \
  -H "Authorization: Basic <mcp-token>" \
  -d '{
    "jsonrpc": "2.0",
    "id": 1,
    "method": "tools/list"
  }'

Start asking questions

Once connected, you can ask natural language questions like:

Question	What the agent does
Why is my materialized view stale?	Checks materialization lag, hydration status, replica health, and source errors.
Why is my cluster running out of memory?	Checks replica utilization, identifies the largest dataflows, and finds optimization opportunities via the built-in index advisor.
Has my source finished snapshotting yet?	Checks source statistics and status.
How much memory is my cluster using?	Checks replica utilization metrics across all clusters.
What’s the health of my environment?	Checks replica statuses, source and sink health, and resource utilization.
What can I optimize to save costs?	Queries the index advisor for materialized views that can be dematerialized and indexes that can be dropped.

The agent translates natural language questions into the appropriate system catalog queries, uses the query_system_catalog tool to run those queries, and synthesizes the results.

Tools

`query_system_catalog`

Execute a read-only SQL query restricted to system catalog tables (mz_*, pg_catalog, information_schema).

Parameter	Type	Required	Description
`sql_query`	string	Yes	`SELECT`, `SHOW`, or `EXPLAIN` query using only system catalog tables.

Only one statement per call is allowed. Write operations (INSERT, UPDATE, CREATE, etc.) are rejected.

Example response:

{
  "jsonrpc": "2.0",
  "id": 1,
  "result": {
    "content": [
      {
        "type": "text",
        "text": "[\n  [\n    \"quickstart\",\n    \"ready\"\n  ],\n  [\n    \"mcp_cluster\",\n    \"ready\"\n  ]\n]"
      }
    ],
    "isError": false
  }
}

Key system catalog tables

Scenario	Tables
Freshness / lag	`mz_internal.mz_materialization_lag`, `mz_internal.mz_wallclock_global_lag_recent_history`, `mz_internal.mz_hydration_statuses`
Memory / resources	`mz_internal.mz_cluster_replica_utilization`, `mz_internal.mz_cluster_replica_metrics`
Cluster health	`mz_internal.mz_cluster_replica_statuses`, `mz_catalog.mz_cluster_replicas`
Source / Sink health	`mz_internal.mz_source_statuses`, `mz_internal.mz_sink_statuses`, `mz_internal.mz_source_statistics`
Object inventory	`mz_catalog.mz_materialized_views`, `mz_catalog.mz_sources`, `mz_catalog.mz_sinks`, `mz_catalog.mz_indexes`
Optimization	`mz_internal.mz_index_advice`, `mz_catalog.mz_cluster_replica_sizes`

Use SHOW TABLES FROM mz_internal or SHOW TABLES FROM mz_catalog to discover more tables.
